ADVU-25-5-P-A ADVU-25-5-A-P-A,-10,15,-20,-25,-30,-40,-50 Festo Double-Acting Compact Cylinder

Brand Name : Festo, AIRWOLF or OEM

Model Number : ADVU-25-5-P-A, ADVU-25-10-P-A, ADVU-25-15-P-A, ADVU-25-20-P-A, ADVU-25-25-P-A, ADVU-25-30-P-A, ADVU-25-40-P-A, ADVU-25-50-P-A, ADVU-25-5-A-P-A, ADVU-25-10-A-P-A, ADVU-25-15-A-P-A, ADVU-25-20-A-P-A, ADVU-25-25-A-P-A, ADVU-25-30-A-P-A, ADVU-25-40-A-P-A, ADVU

Certification : CE, ISO9001

Place of Origin : Germany, China

MOQ : 1 piece

Price : 8-10USD

Payment Terms : T/T,Western Union,Paypal

Supply Ability : 1000 pcs per week

Delivery Time : 1-7 work days

Packaging Details : Boxes, Cartons, Pallets, Plastic bags

Item Code : ADVU-25-5-P-A, ADVU-25-10-P-A, ADVU-25-15-P-A, ADVU-25-20-P-A, ADVU-25-25-P-A, ADVU-25-30-P-A, ADVU-25-40-P-A, ADVU-25-50-P-A, ADVU-25-5-A-P-A, ADVU-25-10-A-P-A, ADVU-25-15-A-P-A, ADVU-25-20-A-P-A, ADVU-25-25-A-P-A, ADVU-25-30-A-P-A, ADVU-25-40-A-P-A, ADVU

Body Material : Wrought aluminium alloy

Piston Rod Material : High-alloy stainless steel

Seals Material : PU

Working Pressure : 0.1~1MPa

Ambient temperature : -20°C-80°C

Bore Size : 25mm

Working Medium : Compressed air to ISO 8573-1:2010 [7:4:4]

Contact Now

ADVU-25-5-P-A ADVU-25-5-A-P-A,-10,15,-20,-25,-30,-40,-50 Festo Double-Acting Compact Cylinder
The Festo ADVU series represents a line of high-performance compact cylinders engineered for industrial automation where space optimization is critical. These double-acting pneumatic actuators are characterized by a significant reduction in installation space—up to 50% smaller compared to standard ISO 15552 cylinders—while maintaining robust performance. The series offers a wide range of bore sizes from 12 mm to 125 mm and customizable stroke lengths from 1 mm to 400 mm. Key features include elastic cushioning at both end positions for smooth operation, non-contact position sensing capability via a magnetic piston, and versatile mounting options. Constructed from durable materials like anodized aluminum alloy for the body and high-alloy steel for the piston rod, the ADVU cylinders operate effectively within a pressure range of 0.05 to 1.0 MPa and can withstand ambient temperatures from -20°C to +80°C, making them suitable for demanding applications in packaging, assembly, and material handling.
Order Codes:
Item Code Piston (mm) Stroke (mm) Part no. Type Item Code Piston (mm) Stroke (mm) Part no. Type
ADVU-25-5-P-A 25 5 156522 with female thread ADVU-25-5-A-P-A 25 5 156608 with male thread
ADVU-25-10-P-A 25 10 156523 with female thread ADVU-25-10-A-P-A 25 10 156609 with male thread
ADVU-25-15-P-A 25 15 156524 with female thread ADVU-25-15-A-P-A 25 15 156610 with male thread
ADVU-25-20-P-A 25 20 156525 with female thread ADVU-25-20-A-P-A 25 20 156611 with male thread
ADVU-25-25-P-A 25 25 156526 with female thread ADVU-25-25-A-P-A 25 25 156612 with male thread
ADVU-25-30-P-A 25 30 156527 with female thread ADVU-25-30-A-P-A 25 30 156613 with male thread
ADVU-25-40-P-A 25 40 156528 with female thread ADVU-25-40-A-P-A 25 40 156614 with male thread
ADVU-25-50-P-A 25 50 156529 with female thread ADVU-25-50-A-P-A 25 50 156615 with male thread
Datasheet:
General technical data
PistonØ 12 16 20 25 32 40 50 63 80 100 125
Pneumatic connection M5 M5 M5 M5 G1/8 G1/8 G1/8 G1/8 G1/8 G1/4 G1/4
Piston rod end Female thread M3 M4 M5 M5 M6 M6 M8 M8 M10 M12 M16
Male thread M6 M8 M10x1.25 M12x1.25 M16x1.5 M20x1.5 M27x2
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on the operating/pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Design Piston
Piston rod
Cushioning Elastic cushioning rings/plates at both ends
Position sensing Via proximity switch
Type of mounting With through-hole –
With female thread
With accessories
Mounting position Any
Operating conditions
Piston Ø 12 16 20 25 32 40 50 63 80 100 125
Operating pressure [MPa] 0.12 ... 1 0.1 ... 1 0.08 ... 1 0.06 ... 1 0.05 ... 1
[bar] 1.2 ... 10 1 ... 10 0.8 ... 10 0.6 ... 10 0.5 ... 10
[psi] 17.4 ... 145 14.5 ... 145 11.6 ... 145 8.7 ... 145 7.3 … 145
Ambient temperature(1) °C –20 ... +80
CRC(2) 2

1) Note operating range of proximity switches
2) More information www.festo.com/x/topic/crc

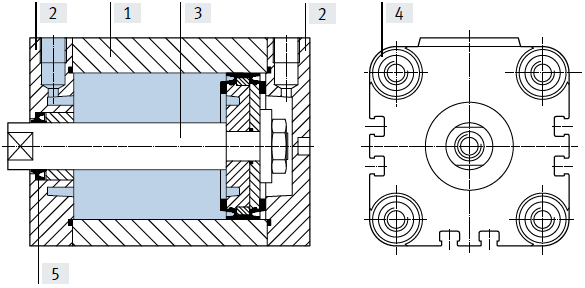

Materials:
ADVU-25-5-P-A ADVU-25-5-A-P-A,-10,15,-20,-25,-30,-40,-50 Festo Double-Acting Compact Cylinder
Compact cylinder
[1] Cylinder barrel Wrought aluminium alloy
[2] Cover Wrought aluminium alloy
[3] Piston rod Ø 12 ... 32 High-alloy stainless steel
Ø 40 ... 125 High-alloy steel
[4] Flange screws Ø 12 ... 16 High-alloy stainless steel
Ø 20 ... 125 Galvanised steel
[5] Dynamic seals Polyurethane

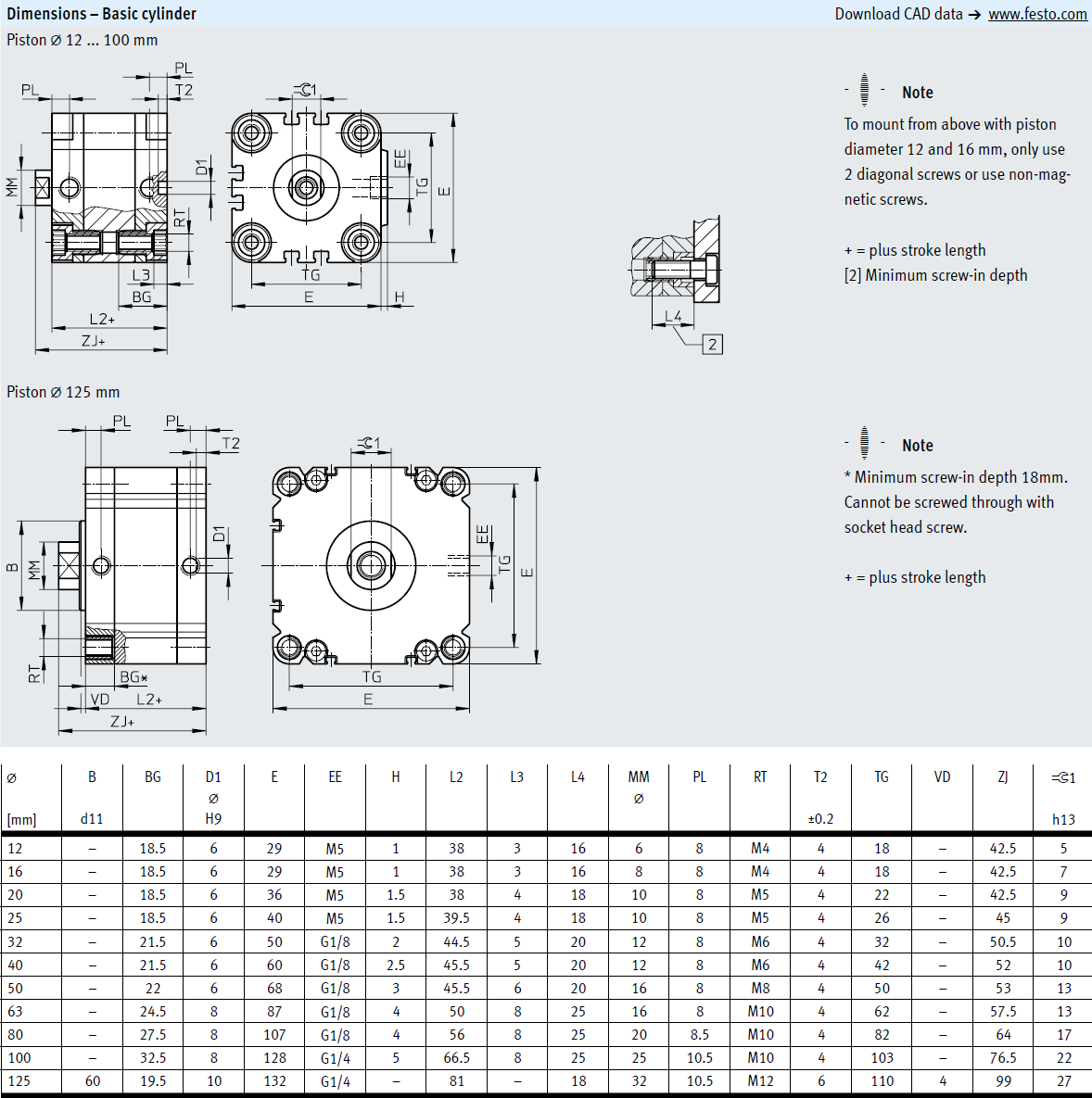

Dimensions:
ADVU-25-5-P-A ADVU-25-5-A-P-A,-10,15,-20,-25,-30,-40,-50 Festo Double-Acting Compact CylinderADVU-25-5-P-A ADVU-25-5-A-P-A,-10,15,-20,-25,-30,-40,-50 Festo Double-Acting Compact Cylinder
Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) 1 year warranty
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
